Материалы

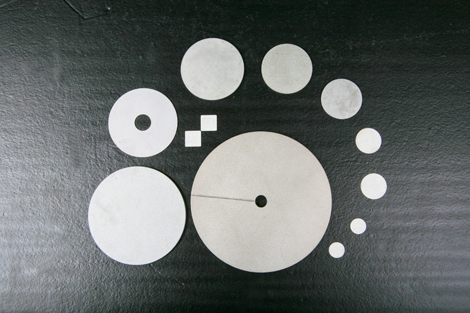

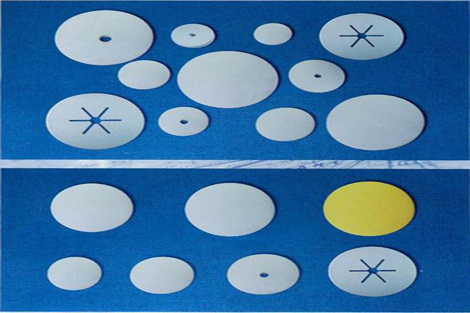

- Molybdenum 99.95% produced from rolled Mo-sheet.
- The disc shall be plated with 0.3-0.4μm rhodium.
- No cracks from punching or other operations are allowed.
- All edges absolute free from burrs
- The faces must be free from spots, pip marks, scratches etc.
- The coating must not show flaws or flake off when tsting the adhesion with adhesive tape.
Подробнее
Описание
Article No. | Description | ΦA ± 0.05 | T +0.1 | ΦB ± 0.1 | Fig. |
---|---|---|---|---|---|
5SXC96-0052 | Mo-disc (A) YST 35F | 64.6 | 2 | 1.5 | |
5SXC96-0053 | Mo-disc (A) YST 45F | 78.1 | 2.5 | 2 | |
5SXC96-0054 | Mo-disc (A) YST 60F | 89 | 3 | 2.5 | |
5SXC96-0059 | Mo-disc (A) YST 90F | 108 | 3.5 | 3 |
Документы
MolybdenumDisc-20214996973
216.6 Кб
